Galvanized cast iron anchor nut for concrete wall formwork system

COMPANY INTRODUCTION      Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to ti

Featured Products

COMPANY INTRODUCTION

      Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to tie rods, all for the nominal thread diameter 15mm (DG 15/17), 20mm(DG20/22), other sizes of thread available on request.

Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System

Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System

Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System

PRODUCTION PROCESS
Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System



PRODUCTION DESCRIPTION
Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System



Item

Size (mm)Weight(Kg)Tensile Strength(MPa)
Anchor Nut
(3 Wings)
ø100
20/10


0.73500
Anchor Nut
(2 Wings)
ø100
17/10


0.59500
Anchor Nut
(2 Wings)
ø90
17/10


0.6500
Anchor Nut
(2 Wings)
ø80
17/10


0.43500

Climbing Cone
20/100.71500

Climbing Cone
17/100.47500

Wing Nut
20/100.62500

Wing Nut
17/100.32500

Top Cup
ø800.49500

Swivel Nut
20/101.15500

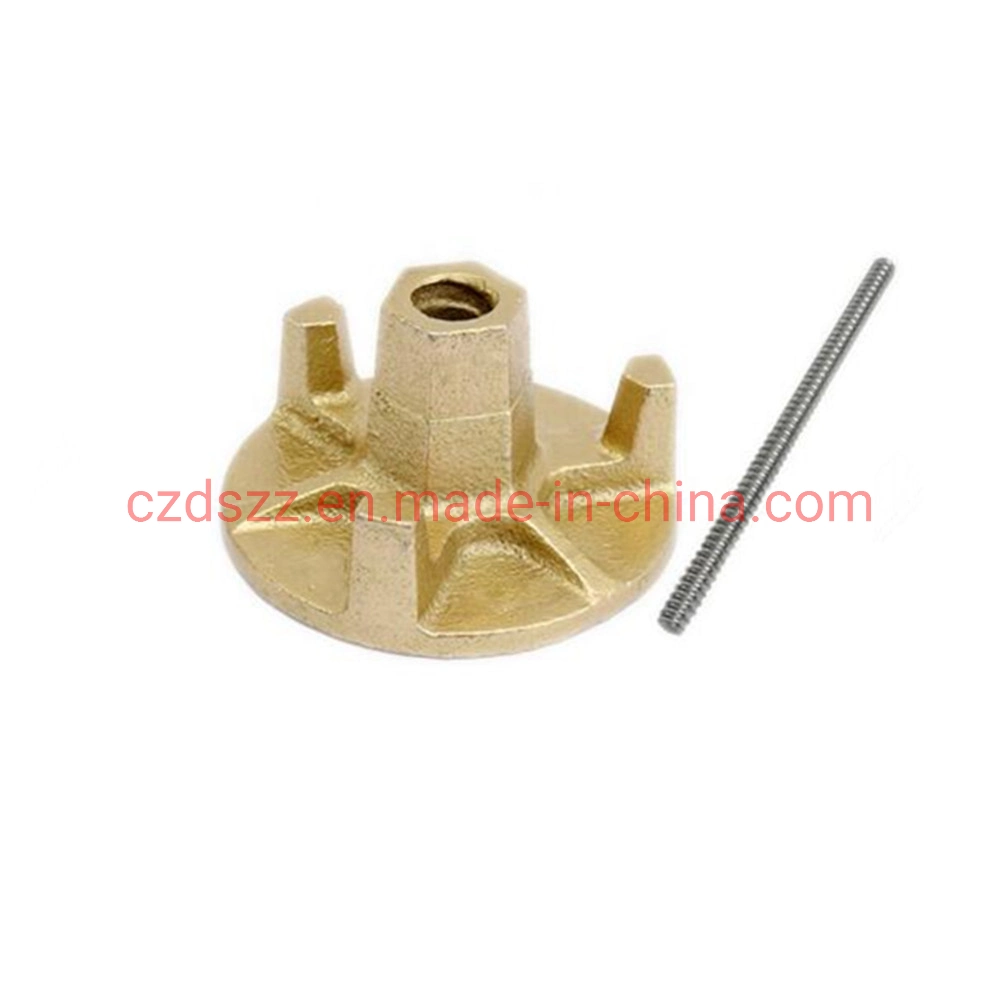

      Anchor Nut in Cast Iron is made by high strength steel grade material.Anchor Nut can be in 2 wings, 3 wings and 4 wings, in different types and shape customized.Anchor Nut is used as clamp nut connect normally steel tie rod and tie bars in concrete form work and shuttering work that as connector joint clamp in fixing concrete formwork system of wall formwork, slab formwork, column formwork, beam formwork, floor formwork, and table formwork.
      Anchor Nuts are specially designed to provide strong and vibration proof threads in thin walled materials and can be quickly and easily be fitted

Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System





Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System

      The Screw Jack Base head is used at the top of the cup lock standard (Vertical) to provide an additional maximum adjustment of length up to 300 - 600 mm. It is designed to be used in conjunction with adjustable system scaffolding.
      Our Jack Nut made of iron casting used to adjust the working heights.

           Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System



      This mobile Top Cups made out of malleable casting provide firm grip to Ledger Blades making the connection rigid and to endure rough site handling. It is free on the cup lock vertical to ensure providing a safe connection at any direction for the horizontal ledger attachment.
Specification:

      *Made from cast iron.
      *Top Cup is available for the pipe of 48.3mm OD and in 3lugs and 4lugs.
      *Weight : 0.57 KG
Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System

PACKAGE AND SHIPMENT

Galvanized Cast Iron Anchor Nut for Concrete Wall Formwork System
